    FBG Accelerometer

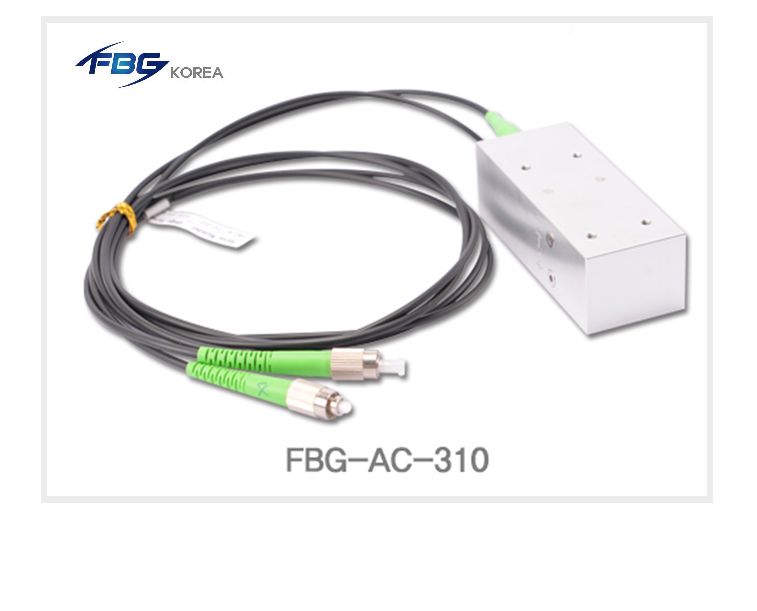

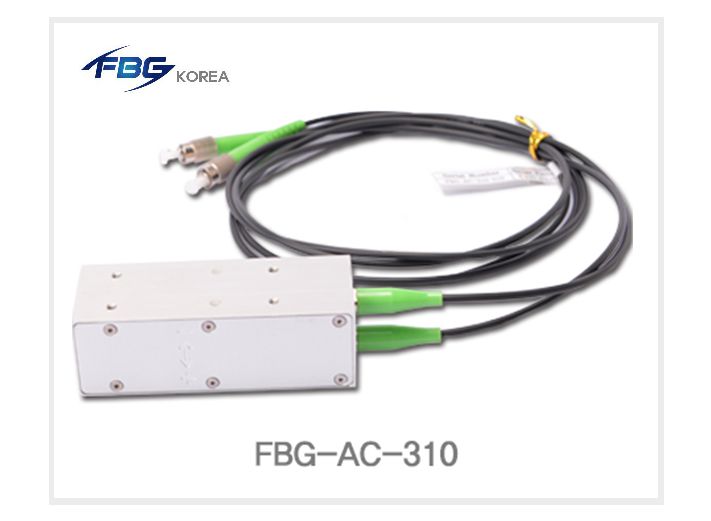

    FBG-AC-310





  - Safety evaluation of structures

  - Long-term measurements for vibration variation of the structures

  - Acceleration and stress measurements of the structures

  - Vibration measurements of the structures by external forces

  - Vibration Measurement of the outside of the structures or of body

  - “USA, EU, China, Japan, Canada patents” registered

  - Effective cost saving

    : Compared with other companies of which FBG Accelerometers are operated broad bandwidth in the range of wavelength

      by using “TWO FBG” sensors, our sensors can be operated at half of that because they use only “ONE FBG”

      for angle measurement and have high accuracy. Therefore Interrogator cost can be reduced.








  - Measurement range : ± 2 G (Decision on the use)

  - Resolution : ± 0.05 %F.S

  - Accuracy : ± 0.25 %F.S

  - Reflectivity : ≧ 70 %

  - Operating temperature : - 20 ~ 80 ℃

  - FWHM (-3dB point) : ≦ 0.1 nm

  - Gauge factor :270 pm/G

  - Frequency : 0 ~ 80 Hz (Decision on the use)

  - Wavelength range : 1,511 ~ 1,584 nm

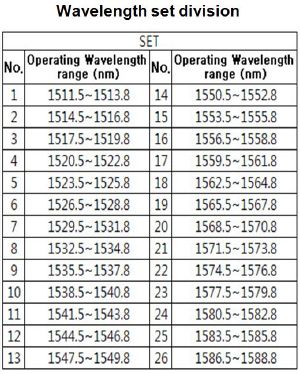

    ※ Choose favorable wavelength from the following set division


Wavelength set division-FBG Accelerometer.jpg
