    FBG Tiltmeter

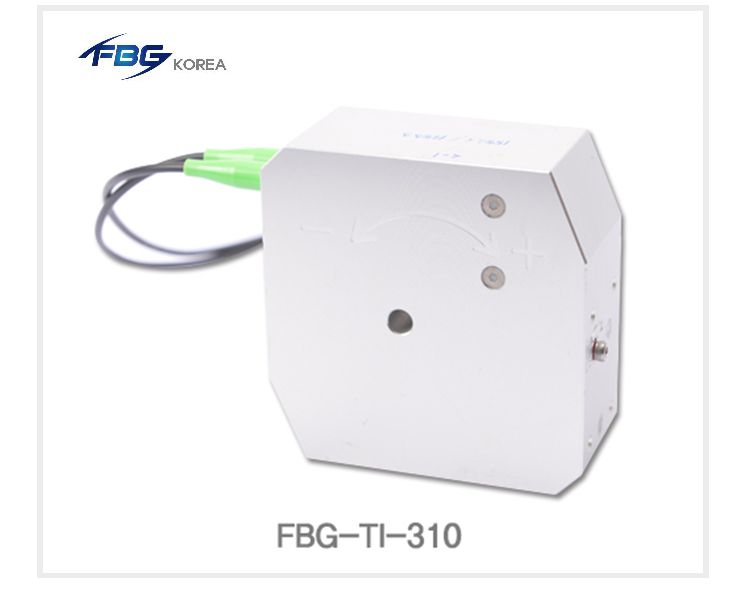

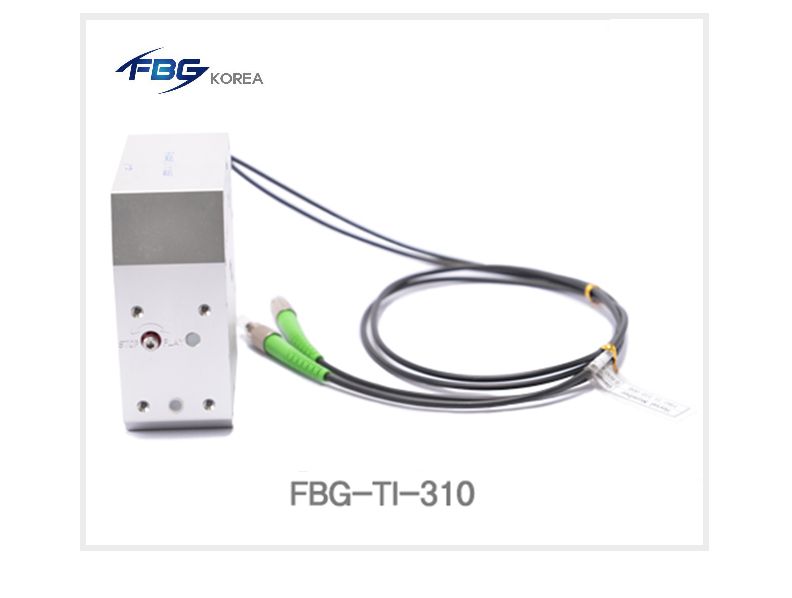

    FBG-TI-310







  - Long-term measurements for the angular variation of structures

  - Measurements for the angular variation of tunnels, dams and road surface

  - Measurements for the angular variation of structures during construction or after completion of construction

  - Measurements for the angular variation of adjacent structures due to the construction of downtown

  - Safety evaluation on adjacent structures when works excavation and stacks the soil

  - Built-in FBG sensor for temperature compensation

  - “USA, EU, China, Japan, Canada patents” registered

  - Effective cost saving

    : Compared with other companies of which FBG Tilt-meters are operated broad bandwidth in the range of wavelength

     by using “TWO FBG” sensors, our sensors can be operated at half of that because they use only “ONE FBG”

     for angle measurement and have high accuracy. Therefore Interrogator cost can be reduced.






  - Measurement range : 8 deg (-3 ~ 5 deg) (Decision on the use)

  - Sensitivity : ≧ 450 pm/deg

  - Resolution : ± 0.05 %F.S

  - Accuracy : ± 0.25 %F.S

  - Reflectivity : ≧ 70 %

  - Operating temperature : - 20 ~ 80 ℃

  - FWHM (-3dB point) : ≦ 0.1 nm

  - Dimension : 87 * 41 * 93 mm

  - Weight : ≦ 1.2 kg

  - Wavelength range : 1,511 ~ 1,584 nm

    ※ Choose favorable wavelength from the following set division

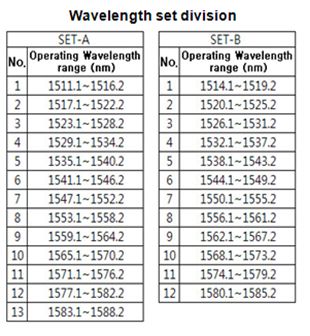

Wavelength set division-FBG Mountable Strain sensor.jpg
